RS-232 Framework Expansion Card

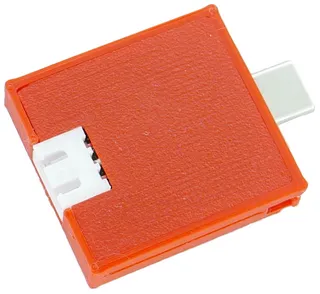

This is an Framework laptop expansion card allowing for RS-232 serial communication. RS-232 equipment can be connected to its JST XH connector or just by using standard 0.1" jumper cables.

Only 3-pin RS-232 interface is supported (RXD GND TXD).

Please note this adapter is not isolated, thus misconnecting anything other than GND to the middle pin might damage the expansion card and/or the laptop itself. Proceed with caution. If in doubt, disconnect the AC power before testing connection as this will allow laptop’s ground to “float”. Once you test it all, you can reconnect the mains.

All units are hand-soldered, tested for functionality, and enclosed in 3D printed case. For more details you can check blog post describing the device.
